Solid timber panels

Ash - 'Triply' Three-Layer Panels

Ash 'Triply' three-layer panel
  • Stock item / some to special manufacture
  • 20mm, 26mm (others by agreement)
  • 20mm in stock: 1250 / 2050 / 2500 / 3000x1250mm
  • Fast-Track 20mm non-stock items typically available within 3-4 weeks in minimum 5 sheets per item
  • Stock items available from single sheets up to multiple packs (see below)
  • Formaldehyde-free D3 bonded for limited high moisture conditions

Click to see a typical 1250x1250mm panel face & reverse:

Full length ash panel

European Ash A/B

Construction

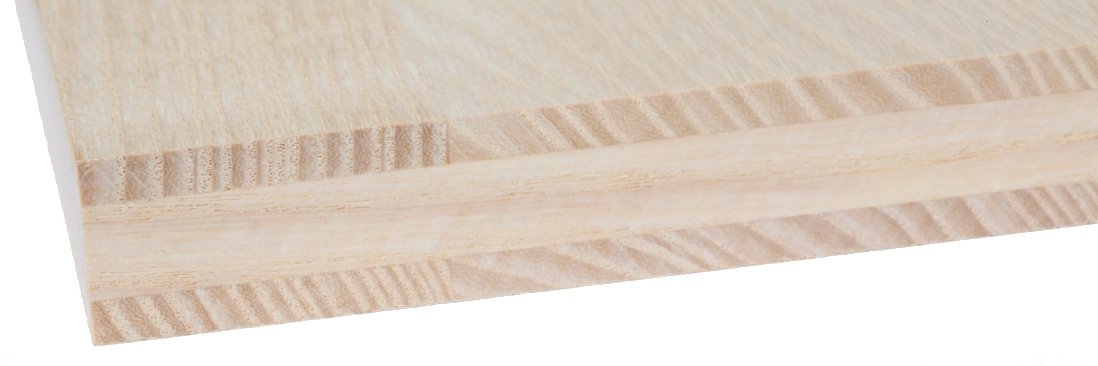

European Ash Triply three-layer panels are constructed from 5mm thick, full-length ash faces made from strips of random width of 50-140mm wide, which are bonded either side of a cross-banded 10mm or 16mm finger jointed ash core.

The ash strips making up the panel core and faces are bonded together with formaldehyde-free D3 water resistant glue, and the faces calibrated to 80 grit before being protected with shrinkwrapping

The panels can be supplied as produced, or cut or machined to pattern. They can also be supplied prefinished with lacquer, oil, wax or special finishes as required.

Please click on the main Ash page for details of the wood

Information

Technical details (general)

  • Construction:
    • Full length 5mm thick ash staves of random width (50-140mm wide) bonded to a cross-banded finger jointed ash core
  • Stock items:
    • 20mm 1250x1250mm
    • 20mm 2050x1250mm
    • 20mm 2500x1250mm
    • 20mm 3000x1250mm
  • Standard thickness:
    • 20mm (5mm/10mm/5mm)
    • 26mm (5mm/16mm/5mm)
  • Standard sizes:
    • (40) 810x1250mm
    • (40) 1000x1250mm
    • (40) 1250x1250mm *** 20mm in stock **
    • (30) 1650x1250mm
    • (30) 1900x1250mm
    • (30) 2050x1250mm *** 20mm in stock **
    • (20) 2300x1250mm
    • (20) 2500x1250mm *** 20mm in stock **
    • (20) 2750x1250mm
    • (20) 3000x1250mm *** 20mm in stock **
  • Special sizes:
    • In principle, any size can be produced up to the maximum stated above
  • Calibration:
    • Final sanding with 80 grit
  • Packaging:
    • Faces individually protected with shrinkwrapping
  • Tolerances:
    • Length/width: +5mm/-3mm
    • Thickness: ±0.2mm
    • (Others by arrangement)
  • Face grades:
    • A face / B reverse
    • Other grading by arrangement
  • Bonding Quality:
    • D3 - Limited high moisture applications
    • Formaldehyde (CAS # 50-00-0) is not intentionally used in the glue. However, trace levels (< 0.02%) may be present as a result of the specific characteristics of the raw materials and/or of the manufacturing process
  • Other features:
    • Other woods can be incorporated into the construction of the panel to achieve a decorative or contrasting effect
