Sculptured Panels - Causeway

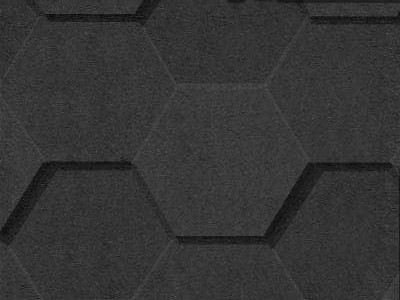

Sculptured Panel - Causeway Pattern: Black through-coloured MDF
  • Special order item in exact quantity required
  • Minimum thickness = 8mm
  • Pattern height = approx 4mm
  • Pattern repeats on all edges at approx. 170x115mm (different scales available)
  • Grooved or laminate bonded to reverse
  • Causeway shown in black through-coloured MDF

Overview

Causeway is a repeating series of 75mm hexagons machined at 3 different levels. There is a difference of 4mm between the high and low points of the profiled design, although these dimensions can be amended readily. The product can be supplied as a single-layer or composite of multiple layers in minimum thickness of 8mm

Although it is available in a range of materials and finishes, and can be produced in specific panel sizes & sets, Causeway is typically supplied using coloured MDF in a standard panel size of 2400x1200mm

In detail

While removing material from one side of any panel can often cause it to cup towards the machined face, the machining in this case is very subtle, so the risk of cupping is minimized.

These panels are often ordered with a diamond pattern of relieving v-grooves machined into the reverse in order to help keep the panel as flat as possible. Alternatively, a laminate can be bonded to the reverse or an additional panel such as 18mm MDF can be used in place of the laminate. This increases the overall thickness, but offers additional bulk to help with hidden fixings

This machined design repeats on a 2400x1200mm basis. However, we would advise against classing any design constructed of multiple layers of different colours as a repeating set

Information

Technical details (general)

  • Construction:
    • Single or multiple layers of through-coloured MDF or other suitable raw material with one surface machined to a deep, repeating pattern
  • Pattern height:
    • Approx. 4mm
  • Standard thickness:
    • Minimum 8mm
  • Standard sizes:
    • Produced to order in bespoke sizes
  • Pattern repeat:
    • Approx. 170x115mm (different scales available)
  • Maximum size:
    • Determined by material used and quantity required
    • In principle, panels can be supplied up to 3600x1500mm, but not as a fully matched set (max. size subject to availability of required material)
  • Finishing:
    • All items can be supplied raw or coated with various coatings such as clear lacquer or oil
