Solid timber panels

European Walnut - 'Triply' Three-Layer Panels

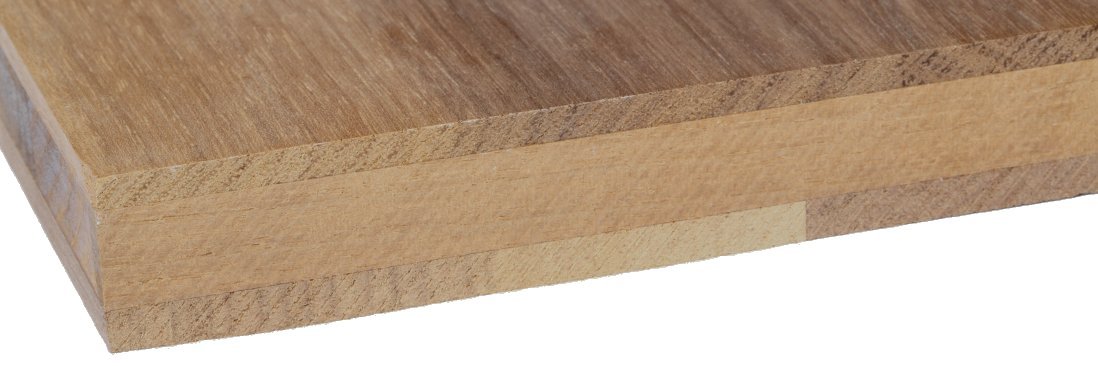

European Walnut 'Triply' three-layer panel
  • Special order item
  • 20mm, 26mm (others by agreement)
  • Maximum size 3000x1250mm
  • Typically available within 2-3 weeks in minimum 5 sheets per item
  • Bulk packages of mini-bundles (10) and pallets (20)
  • Supplied unfinished or with various coatings such as clear lacquer, oils, etc.
  • Formaldehyde-free D3 bonded for limited high moisture conditions


Winwood Products is a supplier of the following European Walnut 'Triply' three-layer panels & worktops:

Full length European Walnut panel

Specially ordered in minimum quantity of 5 per item, these three-layer panels are constructed from 5mm thick, full-length European Walnut faces bonded either side of a cross-banded 10mm or 16mm finger jointed European Walnut core. The faces are made from strips of random width of 50-140mm wide.

The European Walnut strips making up the panel core and faces are bonded together with formaldehyde-free D3 water resistant glue, and the faces calibrated to 80 grit before being protected with shrinkwrapping

The panels can be supplied as produced, or cut or machined to pattern. They can also be supplied prefinished with lacquer, oil, wax or special finishes as required.

Please click on the main European Walnut page for details of the wood


Technical details (general)

  • Construction:
    • Full length 5mm thick European Walnut staves of random width (50-140mm wide) bonded to a cross-banded finger jointed core of the same species
  • Standard thickness:
    • 20mm (5mm/10mm/5mm)
    • 26mm (5mm/16mm/5mm)
  • Standard sizes:
    • 810x1250mm
    • 1000x1250mm
    • 1250x1250mm
    • 1650x1250mm
    • 1900x1250mm
    • 2050x1250mm
    • 2300x1250mm
    • 2500x1250mm
    • 2750x1250mm
    • 3000x1250mm
  • Special sizes:
    • In principle, any size can be produced up to the maximum stated above
  • Calibration:
    • Final sanding with 80 grit
  • Packaging:
    • Faces individually protected with shrinkwrapping
  • Tolerances:
    • Length/width: +5mm/-3mm
    • Thickness: ±0.2mm
    • (Others by arrangement)
  • Face grades:
    • A face / B reverse
    • Other grading by arrangement
  • Bonding Quality:
    • D3 - Limited high moisture applications
    • Formaldehyde (CAS # 50-00-0) is not intentionally used in the glue. However, trace levels (< 0.02%) may be present as a result of the specific characteristics of the raw materials and/or of the manufacturing process
  • Other features:
    • Other woods can be incorporated into the construction of the panel to achieve a decorative or contrasting effect
