- Special manufacture item - some in relatively low quantity
- Fineline veneered panels 4mm-100mm thick
- Solid Fineline Plywood 4mm-150mm thick
- Fineline plywood standard size 2300x350mm
- Wider sections can be achieved on site by fixing multiple sections together
- Multiple woods can potentially be mixed within one panel to achieve bespoke effects
Overview

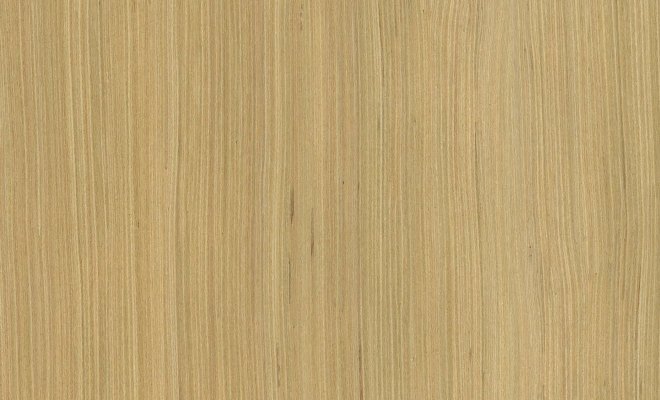

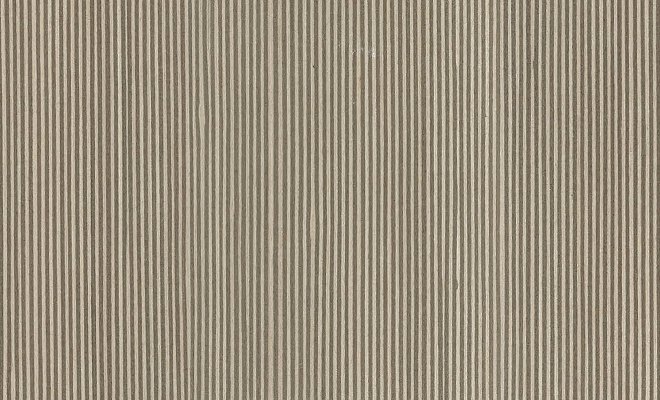

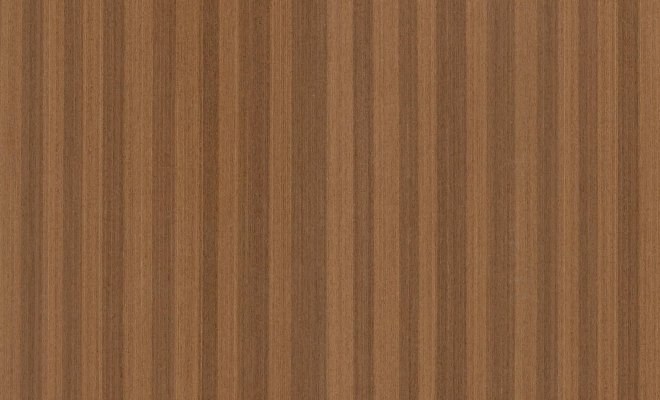

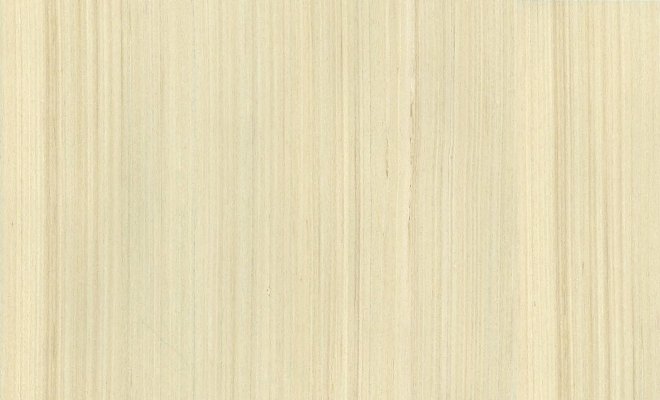

Fineline veneered plywood
Produced by bonding a veneer produced of narrow strips of wood to a core of MDF, plywood, fineline veneered plywood is a panel with an attractive linear surface design. The same veneer can be used to produce fire doors with the same surface design.

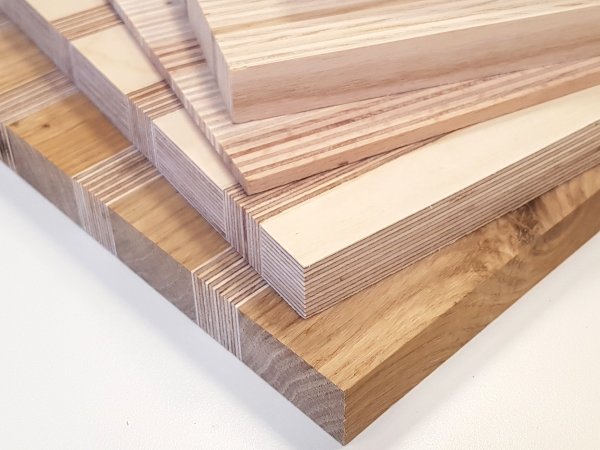

Solid fineline plywood
This product is manufactured using narrow strips of wood that are bonded together to form a solid decorative panel product. It can be laid up with each alternating veneer layer perpendicular to its neighbours or in the same direction (unidirectional), depending upon customer requirement. The product is perfect for use in interior finishes and in the manufacture of decorative furniture, stairs and as a flooring surface material. The product can be supplied as a solid block that enables complicated shapes & patterns to be carved.
In detail
This unusual decorative plywood has a striking stiped appearance right across the face - and in the case of solid fineline plywood, right throughout the thickness of the panel - due to the nature of the woods being used and the manner in which they are oriented and/or mixed.

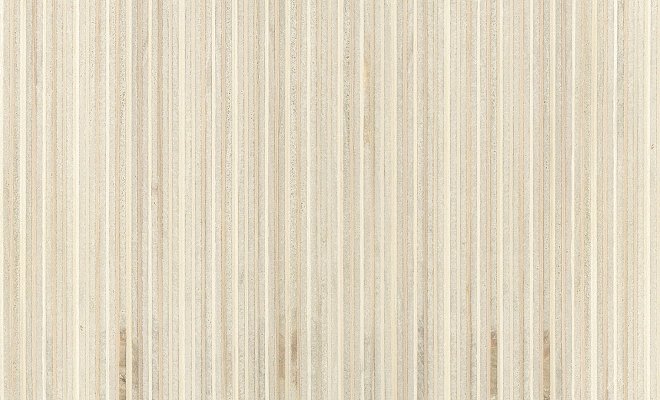

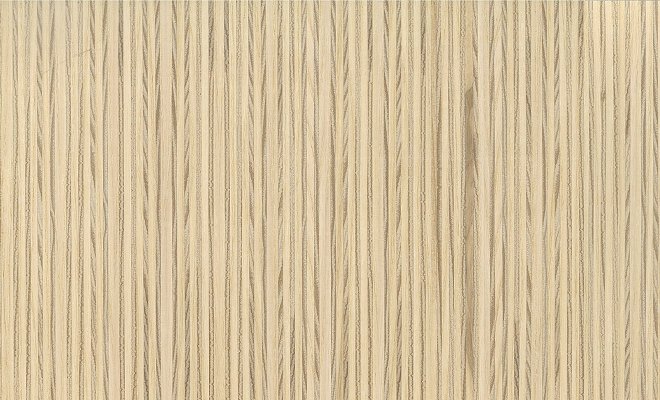

As an alternative to using a single wood specie in a single panel, contrasting strips can be laid up to achieve a pattern of repeats.
NB: Our mills are fully commmited to production of standard plywood to fill the gaps now that Russian plywood no longer legal. As a result, solid fineline is not currently available:

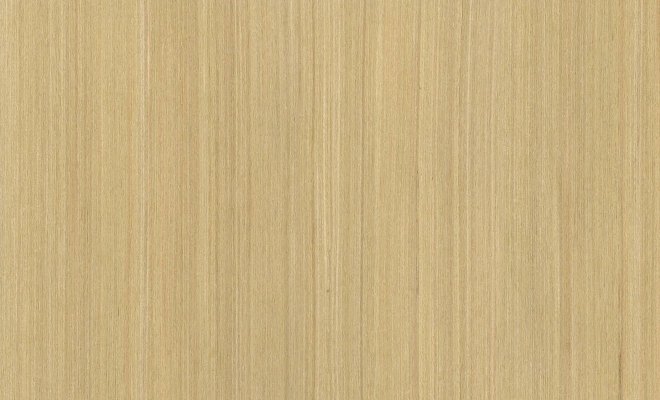

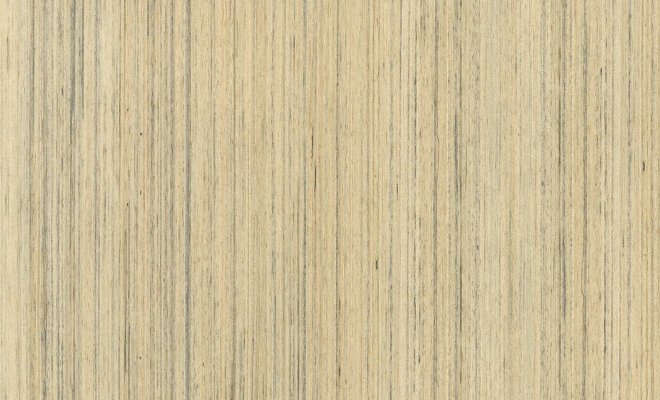

Fineline Veneered Plywood

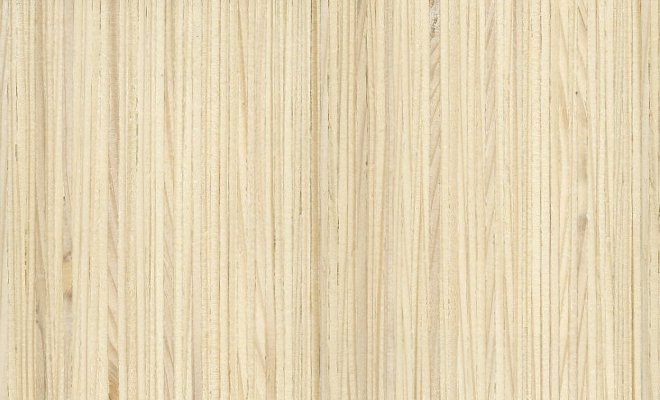

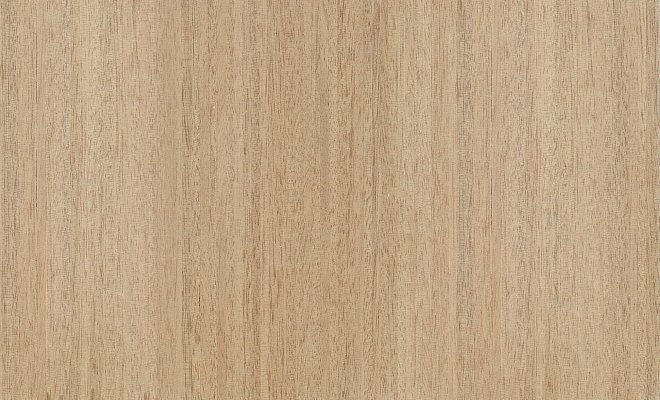

Solid Fineline Plywood
Technical Information
Fineline Veneered Plywood
- Thickness
- From 4mm up to 100mm
- Standard sizes
- 2440x1220mm - others subject to quantity
- Special sizes
- In principle, any size up to maximum 3050x1525mm
- Quantity
- Often available from minimum 15m2 up to full trailer loads
- Tolerances
- Full sheets - as per the core material chosen
- Cut size panels - as requested subject to physical limitations
- Faces
- Sanded on both sides
Solid Fineline Plywood
- Thickness
- 4mm, 6mm, 10mm, 12mm, 15mm, 20mm, 30mm, 40mm, 60mm, 100mm, 150mm (others by arrangement)
- Standard sizes

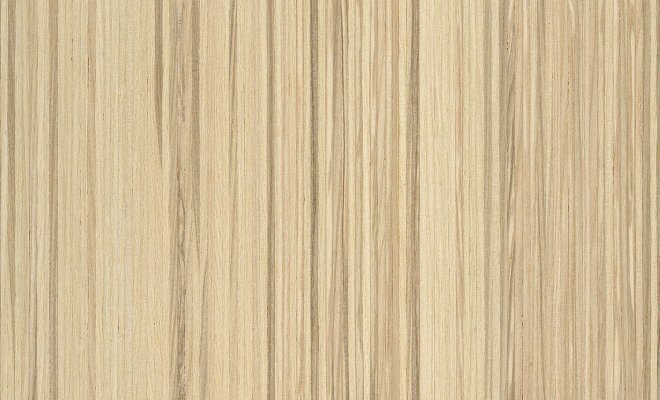

- Unidirectional available in sizes 2300x350mm & 1300x350mm
- Reconstituted veneer & birch bonded to 2440x1220mm core
- Special sizes
- All panels can be supplied cut to size up to maximum sizes shown above
- Quantity
- Unidrectional ash & beech can be produced to order in minimum 120mm high bundles, e.g. 30 @ 4mm, 20 @ 6mm, etc.
- Other unidirectional panels produced to special order in minimum 0.5m3 (e.g. 125m2 @ 4mm, 25m2 @ 20mm, etc)
- Tolerances
- Length/width @ ± 2.0mm, unless specially cut to bespoke size @ ±0.5mm
- Faces
- Sanded on both sides
- Specification
- EN 636-1 - Internal usage
- EN 636-2 Moisture resistant usage (available in some combinations)
- NB: Because manufacture of full thickness fineline panels incorporates short vertical gluelines, designs & installations must allow for full support across the panel's width
